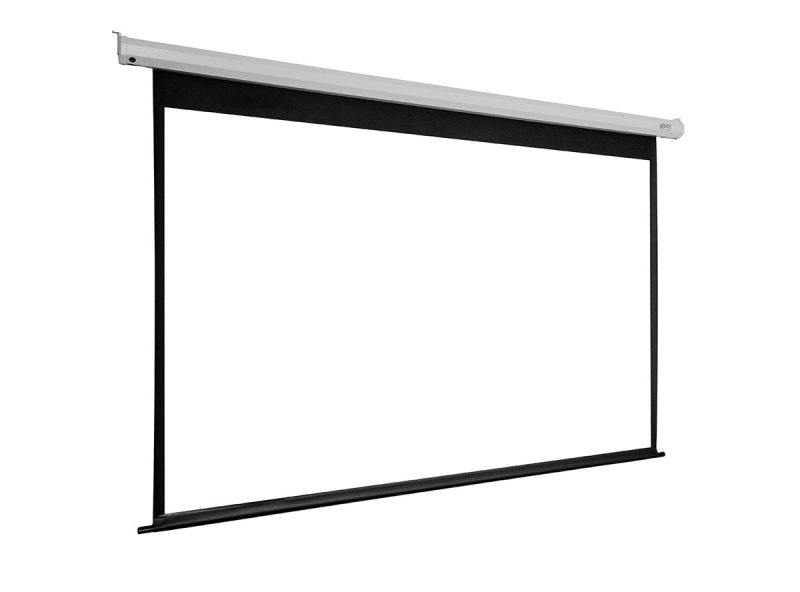

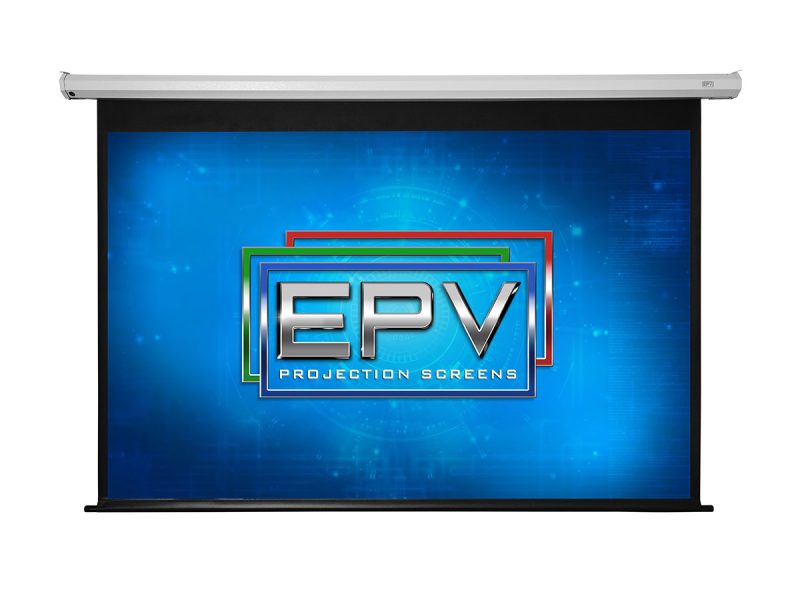

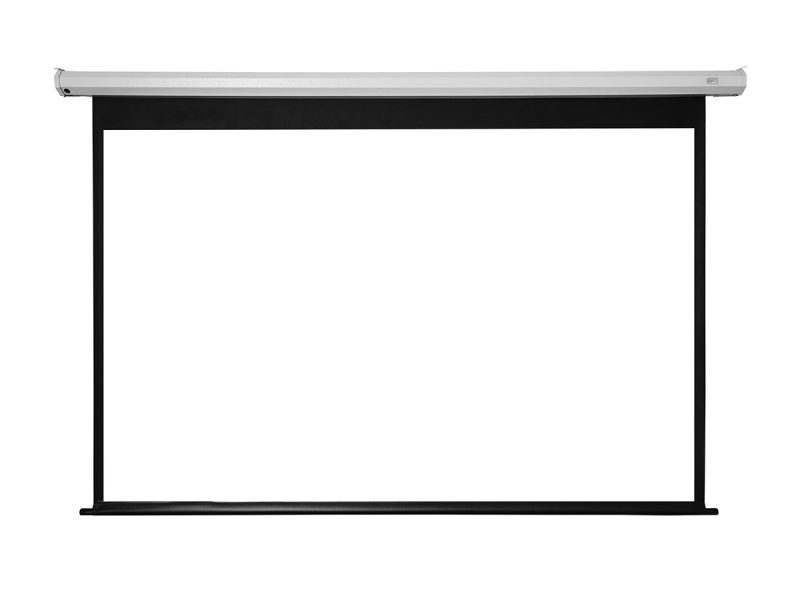

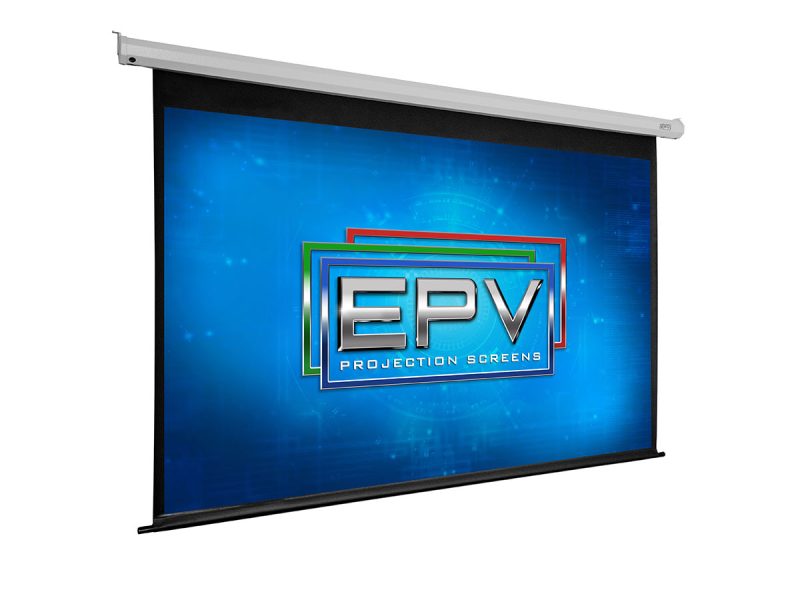

retractable motorized projection screen



The EPV Max is a retractable motorized projection screen with standard features that include IR and RF remote controls, a detachable wall box controller switch for UP/STOP/DOWN operation, and wired or wireless 12-volt trigger capability. The EPV Max is draped with our matte white fiberglass backed, MaxWhite® FG front projection material. The MaxWhite® FG has a 1.1 Gain and a wide 180 degree viewing angle.

How to Preset an electric Screens vertical drop position with the rc1

Screen Material

  • MaxWhite® FG 1.1 Gain (fiberglass reinforced) matte white material is durable and easy to clean
  • Wide viewing angle allows viewers to see a clear bright image across the entire surface from any seating position
  • Standard 4-side black masking borders enhance picture contrast
  • Black backing prevents light penetration to provide a sharp clear picture
  • 4K Ultra HD, Active 3D, and HDR Ready
  • Compatible with standard long throw projectors only (Not compatible with ultra or short-throw projectors)
  • GREENGUARD® Gold Certified – UL 2818 Safe Indoor Emissions

Design, Installation and Controls

  • Durable steel case includes endcaps for wall or ceiling mount options
  • Plug & Play design with built-in low voltage control system, no hardwire installation required
  • Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
  • User-friendly programmable vertical drop position for easy installation
  • Wall box controller is detachable for a clean look while maintaining RF & IR functionality
  • Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
  • 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
    • Wired 12v trigger capability via wall box controller
    • Wireless 12v trigger capability via Radio Frequency remote control

Quality and Reliability

  • Synchronous motor allows silent operation with extended operational longevity and low power consumption
  • Certified by AMX and CRESTRON
  • 5-year limited warranty
User Guide Download
User Guide with RC1 Kit Download
Dimensions Table Download

For more information, go to Reseller Zone
