Ambient Light Rejecting Electric Screen

Polar Max Tension

ISF Certified Products

Compatible Projection :

TechHome EH Products of the year TWICEbest2016

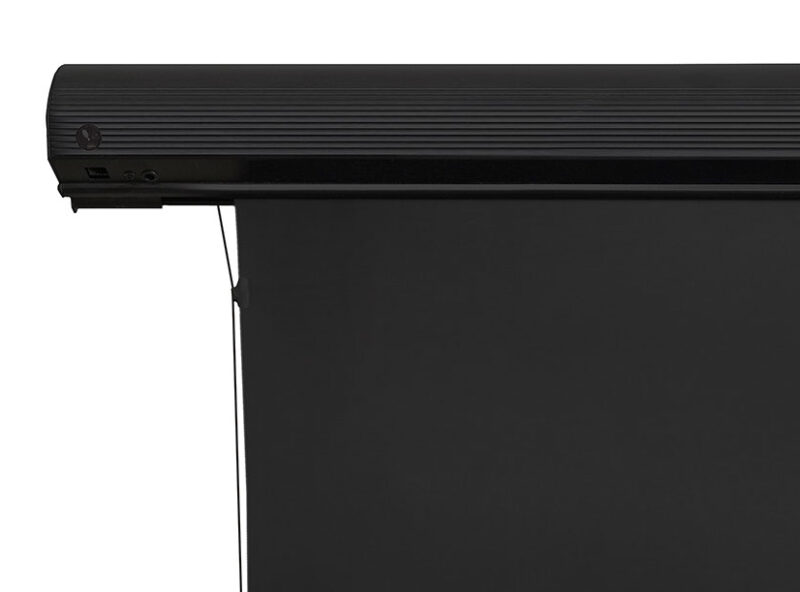

The Polar Max Tension is an electric retractable projection screen that utilizes our award winning, ISF-Certified Polar Star® ambient light rejecting material.  The Polar Max includes a tab-tensioning system that provides a flat, taut surface. Infrared (IR) and Radio Frequency (RF) remotes are included, a detachable wall box controller, and wired and wireless 12-volt trigger capability. The retractable design provides a big screen performance without dedicating wall space to exclusively one purpose, enabling the viewer to enjoy greater versatility with a disappearing screen when not in use.

PolarStar®GainViewing
Angle
Description
1.370°Polar Star® is an ISF-certified angular-reflective ALR screen for high-ambient light rooms. Polarized for Passive 3D, its textured silver-grey surface delivers film-like color balance, high contrast, and depth for 4K, HDR, and Active 3D.
Visit Screen Material Page

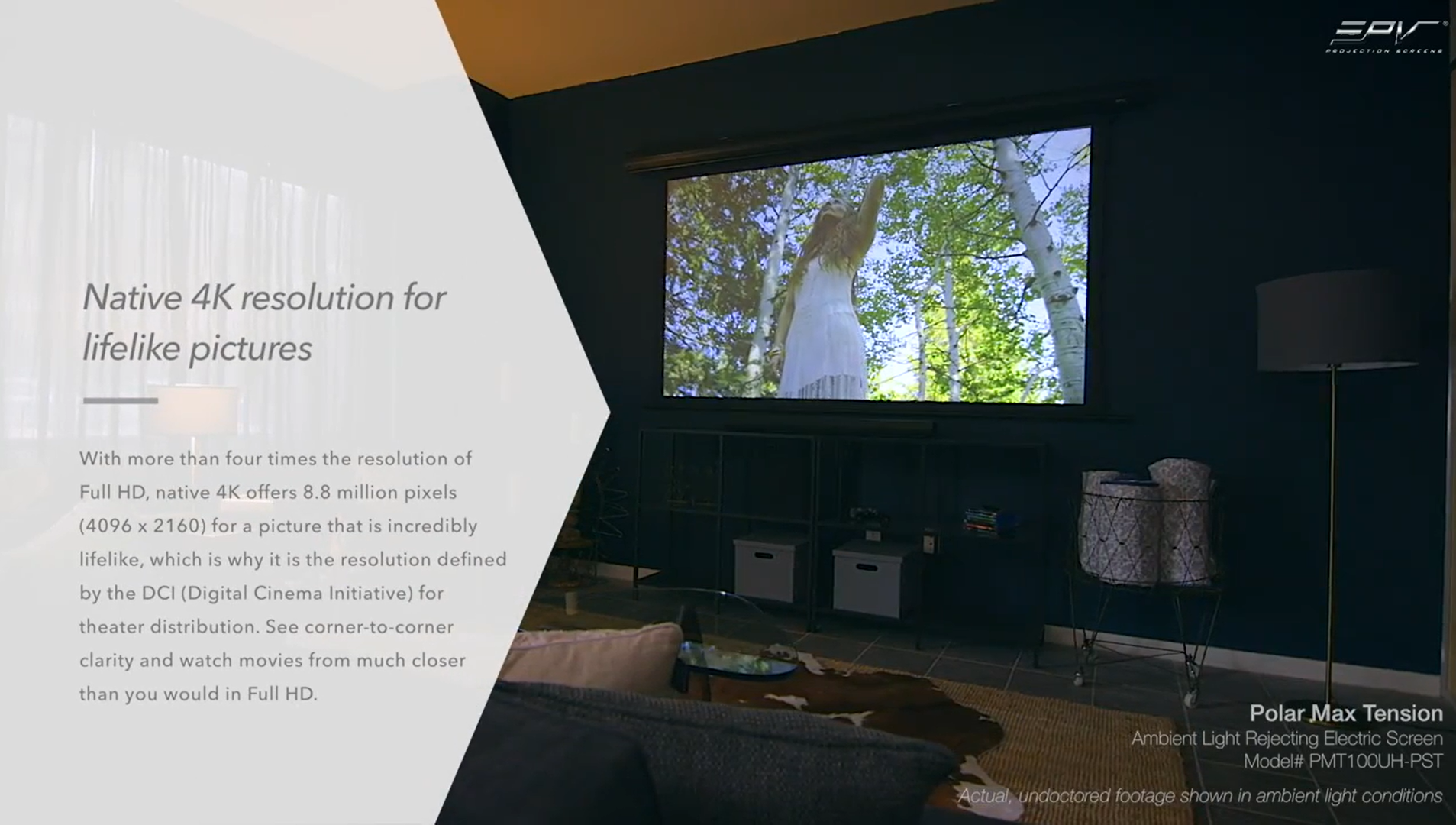

EPV Screens® with SONY’s 4K HDR Projector

Screen Material

  • Polar Star® 1.3 Gain angular-reflective material
  • Four key benefits to Polar Star
    • Ambient Light Rejecting (up to 85% filtration)
    • High Contrast (Retains black levels and color saturation)
    • Directional (angular) reflectivity (wont’ scatter light)
    • Polarized for Passive 3D applications
  • 4K/8K Ultra HD, HDR Ready
  • Not compatible with Ultra-short throw or Short-throw projectors
  • Standard black masking borders absorb projector overshoot while enhancing perceived visual contrast
  • Certified by the Imaging Science Foundation (ISF) for accurate color points, dynamic range, and color temperature

Design, Installation and Controls

  • Durable black casing with mounting hardware included for wall, ceiling, or suspended installation
  • Floating mount brackets slide horizontally allows an easy alignment for a flush wall/ceiling installation on wood studs
  • Tab-tension design helps maintain a flat ripple-free projection surface
  • Plug & Play design with built-in low voltage control system, no hardwire installation required
  • Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
  • User-friendly programmable vertical drop position for easy installation
  • Wall box controller is detachable for a clean look while maintaining RF & IR functionality
  • Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
  • 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
    • Wired 12v trigger capability via wall box controller
    • Wireless 12v trigger capability via Radio Frequency remote control
PDF
Product Cut Sheet Download
User Guide Download
User Guide with RC1 Kit Download
Dimensions Table – RC1 Download
Dimensions Table Download
Dimensions Table – M Type Download

For more information, go to Reseller Zone

Notice to Installer:

Please use the following installation instructions to obtain superior optical performance from the Polar Star® Angular Reflective ALR (Ambient Light Rejecting) Screen.

  • Angular-Reflective material is not compatible with ultra/short-throw projectors
  • Minimum lens throw ratio 1.5x image width
  • Ambient light must not come from the same direction as the projector

Since angular-reflective means that the projected image will reflect at the mirror-opposite angle, it is important to position the projector so that the viewer will get the best possible image.

  • Step 1: Establish the general “eye level” of the viewers
  • Step 2: Set the appropriate projection level
  • Step 3: Adjust the screen height level and projection angle

Input Angle (A) = Output Angle (B) aligns with the viewer’s angle

Polar Star® Reflective Tip
