acoustically transparent Electric Screen

PowerMax Sonic 2

The PowerMax 2 Sonic by EPV® is an acoustically transparent (AT) Ultra-Hi-Def electric/motorized projection screen. Its Sonic White material is designed to complement in-wall speakers while allowing sound to pass through the material with minimal attenuation. It accomplishes superior video performance with negligible loss in sound propagation due to its tight perforated weave 0.9 gain fabric. Standard control accessories include a Infrared and Radio Frequency remote controls, a detachable wall box controller,  and 12-volt trigger capability.

How to Preset an electric Screens vertical drop position with the rc1

Screen Material

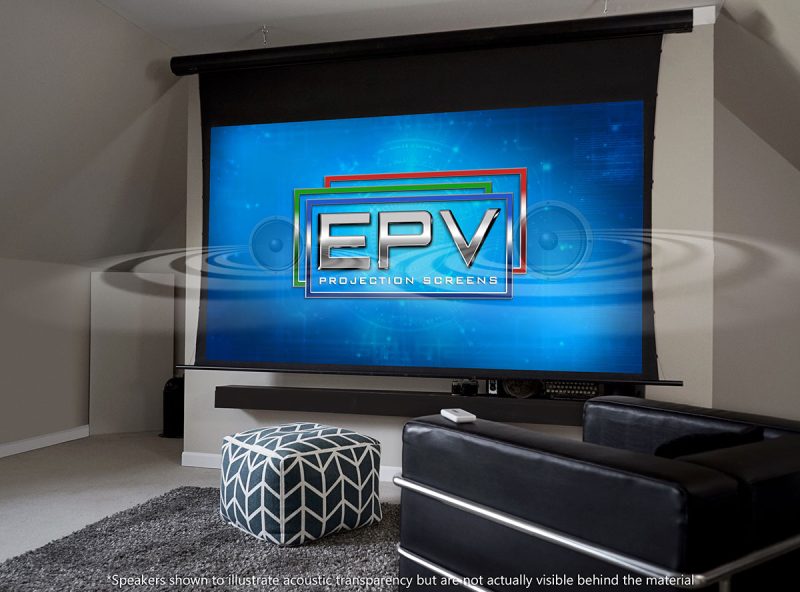

  • Sonic White acoustically transparent projection material allows speaker placement behind the material
  • 180° wide viewing angle with 0.9 gain
  • Black masking borders enhance picture contrast and absorb projector overshoot
  • Top masking border is acoustically transparent
  • Compatible with Standard throw projectors ONLY (Not compatible with Ultra/Short-throw projectors)
  • 4K Ultra HD Ready

Control System

  • Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
  • User-friendly programmable vertical drop position for easy installation
  • Wall box controller is detachable for a clean look while maintaining RF & IR functionality
  • Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
  • 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller
  • Wireless 12v trigger capability via Radio Frequency remote control

Design and Installation

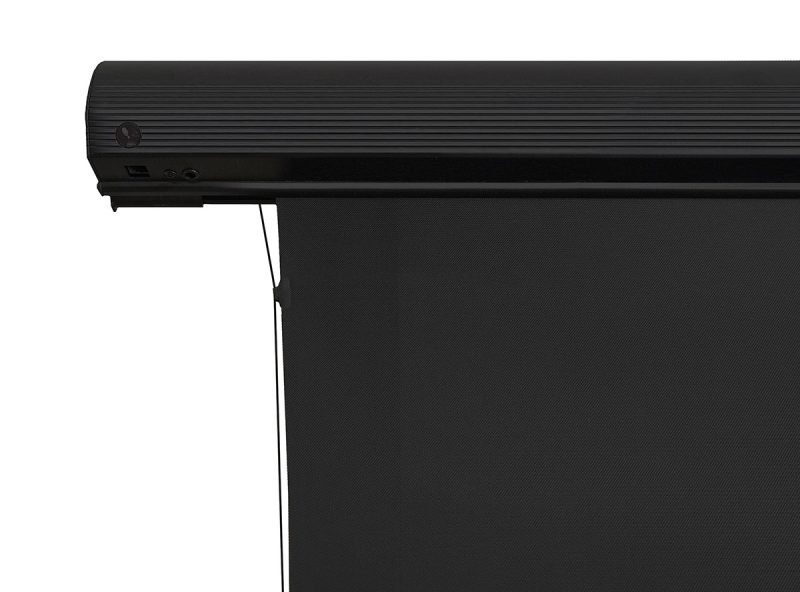

  • Streamlined aluminum casing with black enamel coating is moisture resistant
  • Sliding flush wall mounting brackets allow wood stud installation
  • Suspended ceiling capable using included eyebolt screws and carabiners

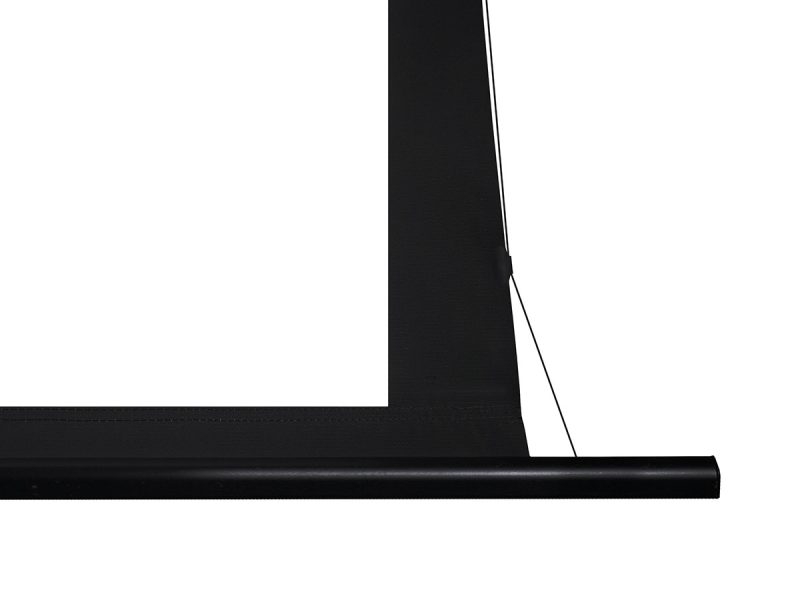

  • Tab-tension design reduces edge curling on sides and assists in maintaining a flat projection surface
  • Ships fully assembled with standard 3-prong power connection ready to plug and play

Quality and Reliability

  • Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • Standard 3-year premium warranty
PDF
User Guide – Discontinued Download
User Guide with RC1 Kit Download
Dimensions Table Download

For more information, go to Reseller Zone

Power Max Sonic 2 Models

Model Number Nominal Diagonal Aspect Ratio Viewable Area Screen Material Gain Case Color
PSC100HT3-E24 100″ 16:9 49″x87.2″ SonicWhite 0.9 Black
PSC110HT3-E24 110″ 16:9 53.9″x95.9″ SonicWhite 0.9 Black
PSC120HT3-E20 120″ 16:9 58.8″x104.6″ SonicWhite 0.9 Black
PSC135HT3-E12 135″ 16:9 66.2″x117.7″ SonicWhite 0.9 Black
PSC150HT3-E12 150″ 16:9 73.5″x130.7″ SonicWhite 0.9 Black
PSC180HT3-E3 180″ 16:9 88.3″x156.9″ SonicWhite 0.9 Black
