non-invasive motorized free-standing electric ALR/CLR projection screen
DarkStar® Max UST-FR
Compatible Projection :
 |
 |

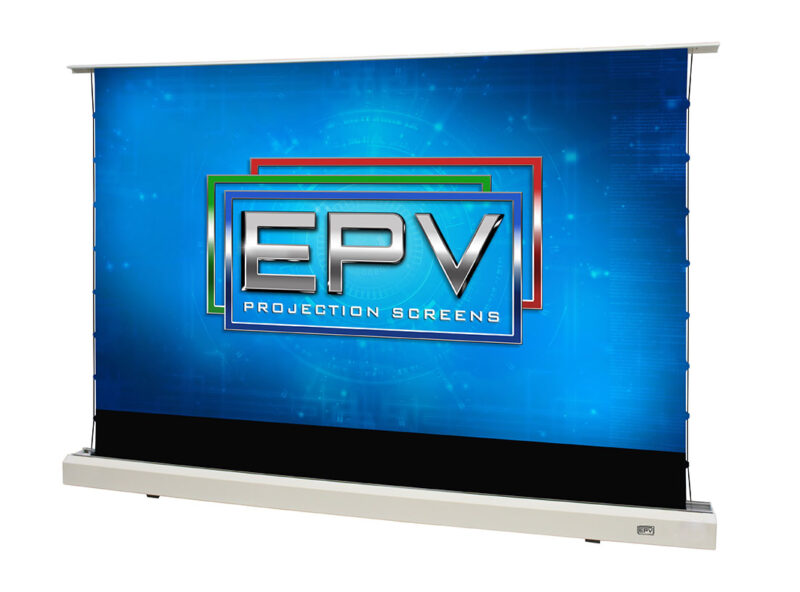

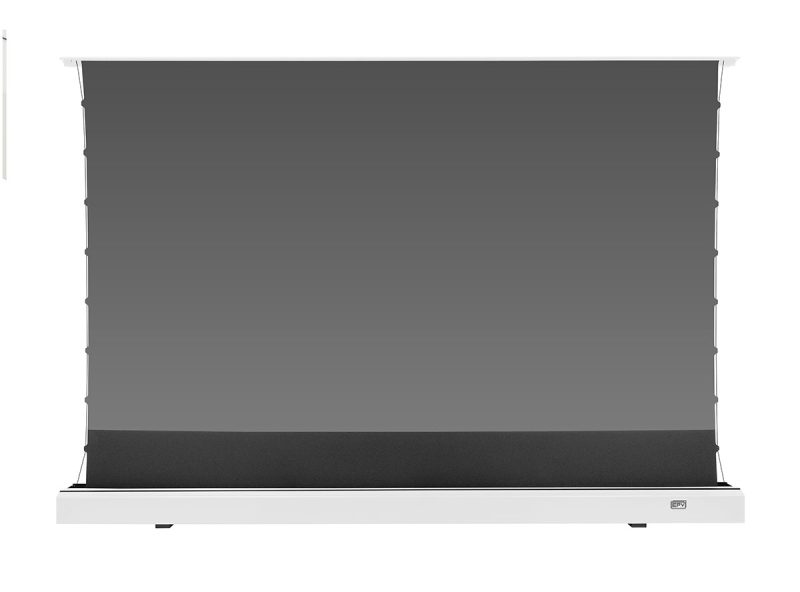

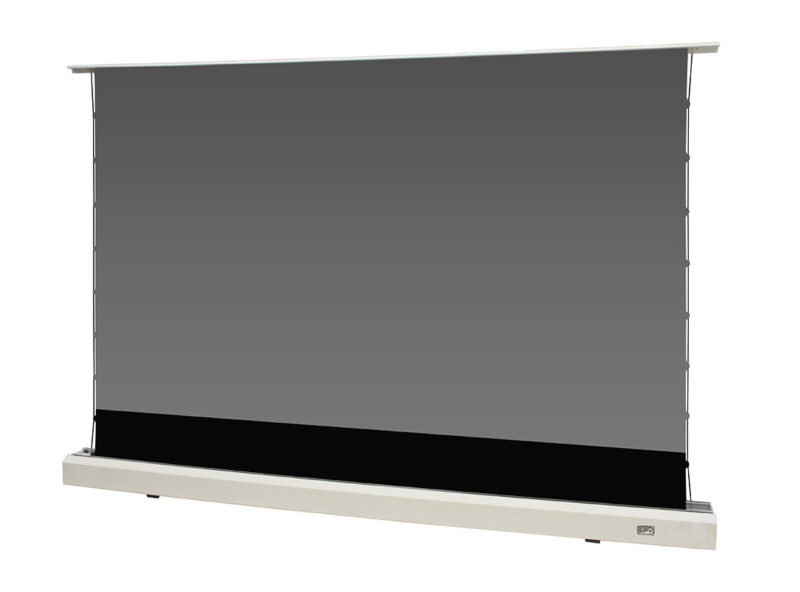

The DarkStar® Max UST-FR Series is a non-invasive motorized free-standing electric projection screen that features a Ceiling/Ambient Light Rejecting (CLR®/ALR) Ultra-short throw Projection material. The design features motorized “scissor-backed” cross risers that raise and lower the material.
Matte white screen materials don’t work well with the lights on and that limits them to dark room presentations. The DarkStar® UST material mitigates the washout effects of ambient light while boosting color saturation, contrast and black/white dynamic range. To minimize the projection footprint, the material is specially formatted tab-tension reinforced to work specifically with UST (ultra-short throw) projectors.

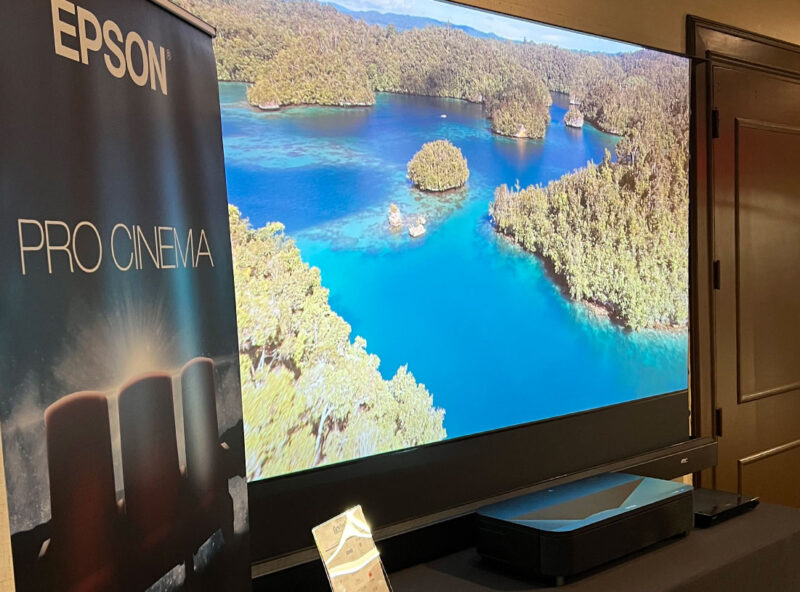

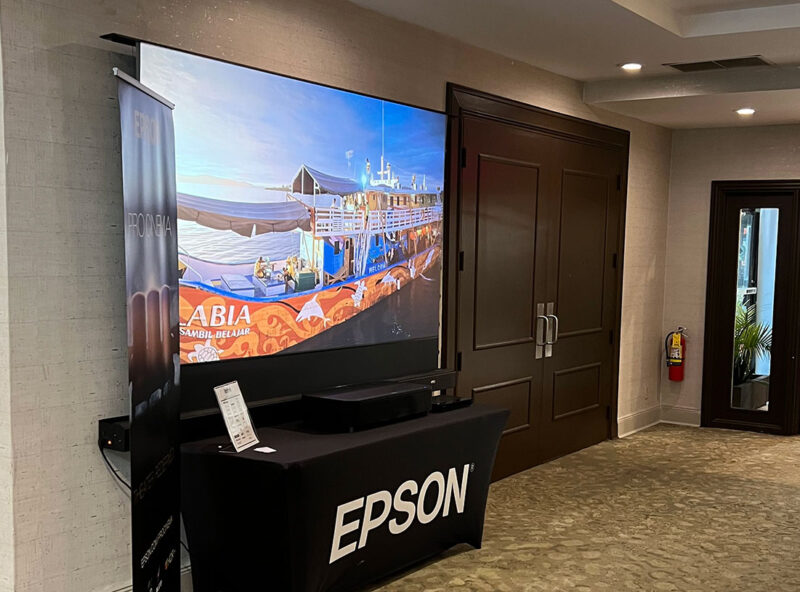

“Elite helped pioneer rollable, lenticular materials for motorized UST screens, and the new DarkStar Max UST-FR is a potential game changer for the emerging laser TV projector category,” said Rob Sabin, ProjectorCentral editor-in-chief. “Integrators can place the screen housing directly on a low-boy credenza and, critically, also now have the option to drop it into cabinetry that can hide the screen, projector and even audio components completely out of sight until needed.”
| DarkStar® UST | Gain | Viewing Angle | Description |
|---|---|---|---|
 | 0.5 | 180° | DarkStar® UST is a ceiling light-rejecting screen material for tabletop ultra-short-throw projectors. Its multi-layer optical structure absorbs up to 95% of overhead light, delivering high contrast, wide viewing angles, and neutral color for 4K, HDR, and 3D. Visit Screen Material Page |
Screen Material:
- DarkStar® UST Ceiling/Ambient Light Rejecting (CLR®/ALR) ultra-short throw front projection material
- Absorbs up to 95% of overhead lighting
- Multi-layer optical structure filters out ambient light for superior image brightness and performance
- Wide diffusion uniformity allows viewers to enjoy a clear and bright picture from any angle
- Black backing on material for sharper picture and clarity
- Black substratum improves contrast while maintaining a neutral color balance
Design and Control System:
- Internal Radio Frequency and Infrared receivers with IR/RF remotes
- Infrared IR “eye” extension sensor and a 5-12 volt trigger to synchronize screen operation with the projector’s power cycle
- Detachable 3-way wall switch keypad, IR “eye” sensor, and RJ45 wired projector trigger
- Wireless 5-12volt projector trigger thru RF remote
Design and Installation:

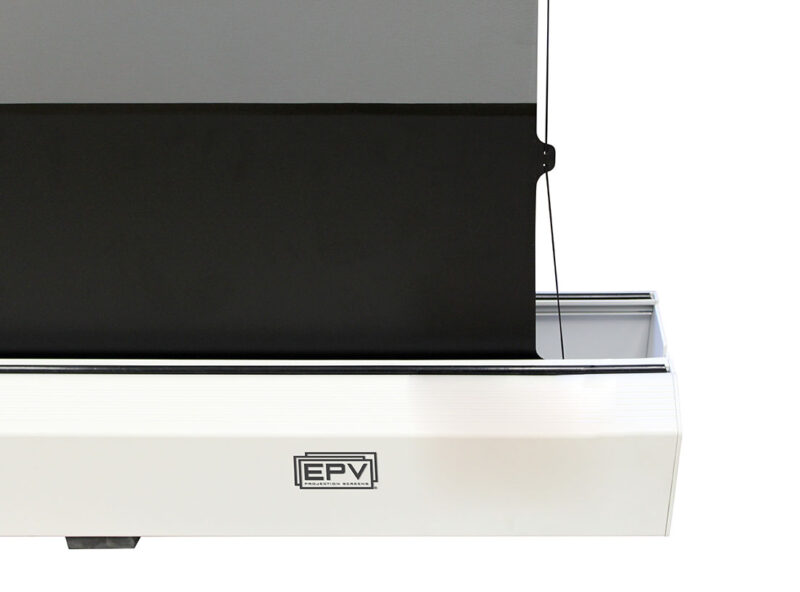

- Rises and lowers using “scissor-backed cross spring risers
- UST format prevents foot traffic from passing between the projector and screen
- Project from a short distance without shadowing the picture

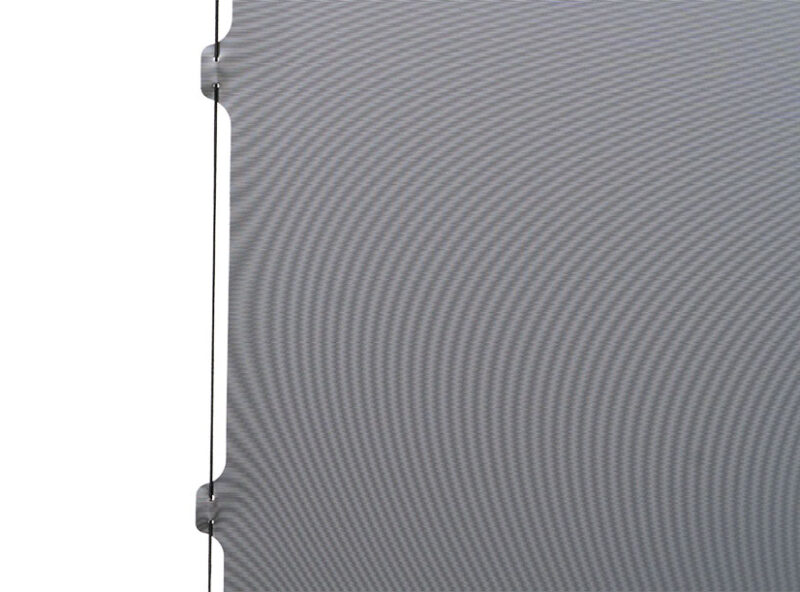

- Tab-tension design helps maintain a flat ripple-free projection surface
- Black masking borders absorb projector overshoot while enhancing perceived image contrast
- Ships fully assembled with standard 3-prong power connection ready to Plug & Play
- Built-in Infrared and Radio Frequency (IR/RF) receivers
- Includes USB rechargeable IR and RF remotes
- Safety feature: Infrared anti-pinch feature automatically stops screen from retracting into housing
Quality and Reliability:
- Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
- 5-year limited warranty
- 6-year ENR-G® warranty for Education, Non-profit, Religious, and Government organizations
- Lifetime tech support by EPV Screens professional service team through email, web chat, or toll-free phone call
Material Tip
Proper Projector Placement for DarkStar® UST
The DarkStar® UST is exclusively for table-mounted ultra-short throw projectors as illustrated in example 1 below. Overhead placement or a standard projector will make the image very dark, on account of the screen’s absorbent layer deflecting light that is not aligned with its reflective angle.
Example 1: Proper Projector Installation
Example 2: Improper Projector Installation
5-year limited warranty. 6-year ENR-G® warranty for Education, Non-profit, Religious, and Government organizations
Lifetime Tech Support by EPV Screens Professional Team through e-mail or phone
-
