EDGE FREE® Ceiling Ambient Light Rejecting Fixed Frame Screen

DarkStar® 17 eFinity (EDGE FREE)

New

Compatible Projection :

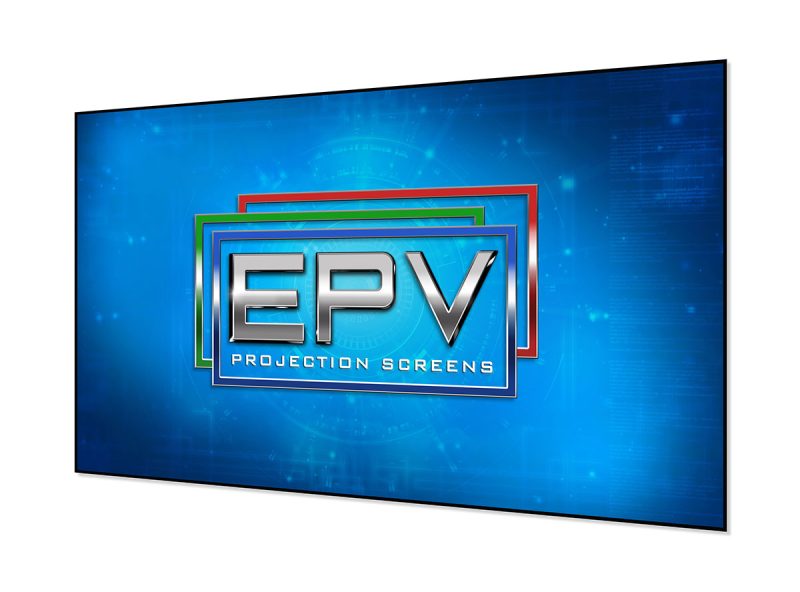

The DarkStar® 17 eFinity by EPV Screens is an EDGE FREE® Ceiling/Ambient Light Rejecting (CLR®/ALR) high-gain front projection fixed frame screen. It features an internal-framework with the wraparound material that is better known as an EDGE FREE® design. It is a more aesthetically pleasing format with its sleek thin frame, which blends seamlessly into any interior décor.  In addition to its design qualities, the eFinity’s EDGE FREE® configuration maximizes the viewing area in a smaller space footprint without compromising the screen’s structural integrity. It includes an LED backlighting kit with Infrared remote control.
The professionally engineered material utilized consists of a multi-layer, optical filter-based viewing surface that is capable of absorbing 90% of overhead light to produce vivid, colorful, contrast-rich images in ambient light room environments.
DarkStar® 17GainViewing
Angle
Description
1.75180°DarkStar® 17 is a high-gain CLR screen for standard-throw projectors in bright rooms. Its UV-resin optical microstructure absorbs 90% of overhead light, while black backing prevents bleed on a smooth 4K/8K surface.

Screen Material

  • DarkStar® 17 high-gain front projection surface for standard throw projectors
  • 1.75 Gain increases projector brightness providing superior picture quality in any high ambient light room environment
  • Ceiling Light Rejecting technology absorbs 90% of overhead light to combat the washout effect
  • Multi-layer optical microstructure relies on UV-resin to filter and absorb light from above.
  • Black backing eliminates light penetration to prevent picture degradation
  • Smooth non-textured surface compatible with 4K/8K Ultra HD projectors

Design and Installation

  • Sleek EDGE FREE® fixed frame relies on an internal framework with wraparound projection material to maximize viewing area in a smaller footprint
  • Aluminum lightweight split-frame design is cost effective for shipping and provides easy access to install sites
  • Sliding wall mount brackets to precisely center the installation

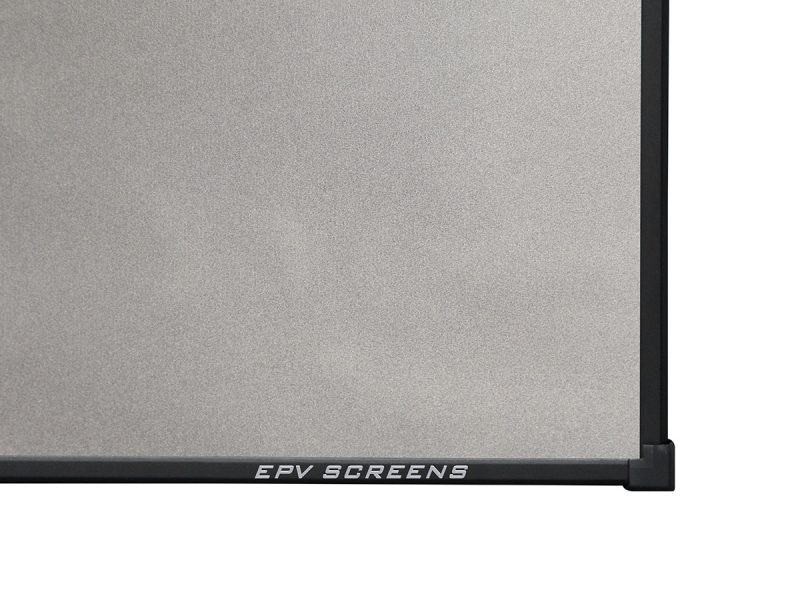

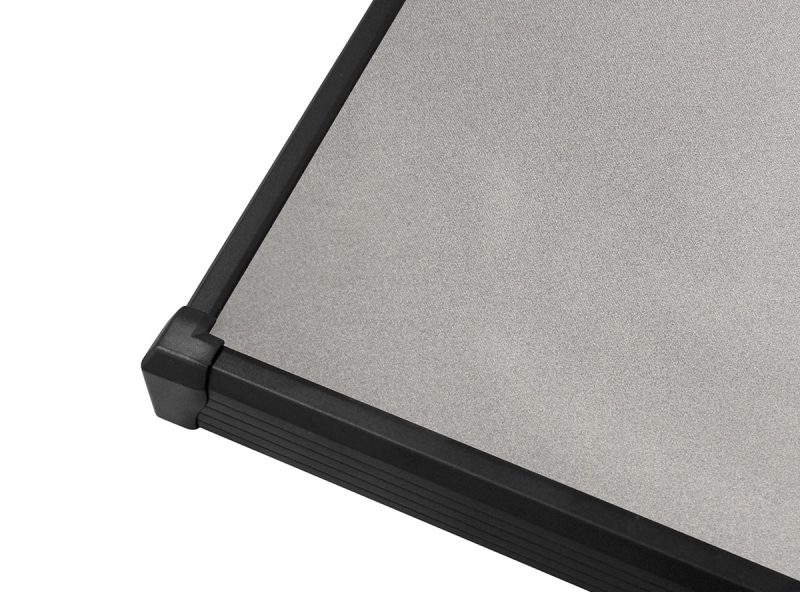

  • Ultra-thin aluminum black bezel finish resembles a large flat panel display
  • LED edge backlighting kit included with Infrared (IR) remote for added visual appearance
PDF
User Guide Download
Dimensions Table Download
Product Cut Sheet Download

For more information, go to Reseller Zone

Proper Projector Placement for DarkStar® 17

Please use the following installation instructions to obtain superior optical performance from the DarkStar® 17 (Ceiling/Ambient Light Rejecting) screen.

Make sure to follow these instructions for the DarkStar® 17 to perform correctly.

  1. Ambient light must not come from the same direction as the projector’s light
  2. For best results, standard throw projector must have a lens throw ratio of 1.35 or greater
  3. Not compatible with Ultra-Short and Short-throw projectors
  4. DO NOT install the projector higher or lower than the screen

Tip: Installing the projector in a 90-degree angle in the middle projection area will provide the best light dispersion for brightness uniformity.

Diagram showing EPV Screens® projection screen setup for custom installations.
